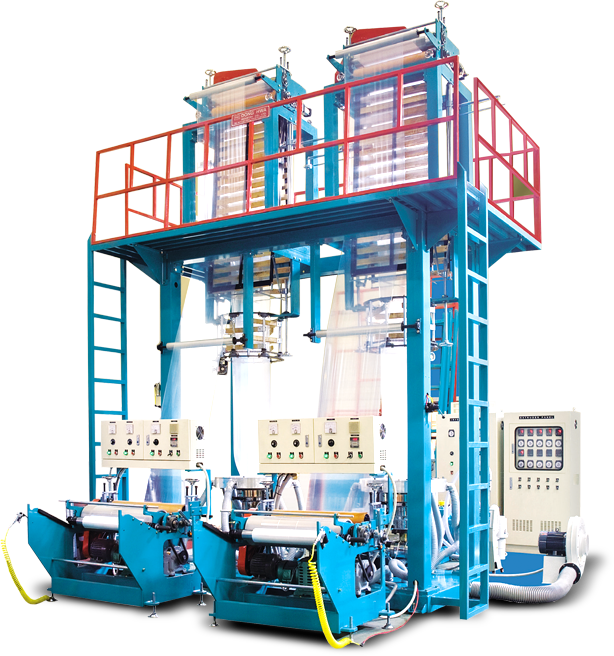

Double Dies Extruder
D
H
W
-
5
0
/
5
5
/
6
0
/
6
5

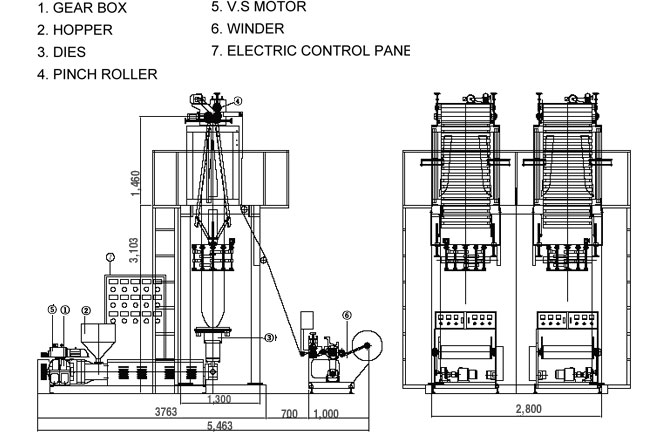

Dimension
Specifications
| ITEM | UNIT | DHW-50 | DHW-55 | DHW-60 | DHW-65 | |
|---|---|---|---|---|---|---|
| FEATURE | MAX.EXTRUSION OUTPUT (LD/HD) | kg/hr | 10 ~ 40 | 25 ~ 50 | 30 ~ 70 | 30 ~ 80 |
| WIDTH OF THE FILM | m/m | 100 ~ 500 | 200 ~ 450 | 200 ~ 500 | 300 ~ 650 | |
| EXTRUDER | SCREW DIAMETER | m/m | Ø50 | Ø55 | Ø60 | Ø65 |
| LENGTH/DIAMETER
RATIO OF SCREW (L/D) |
. | 28:1 | 28:1 | 28:1 | 28:1 | |
| MAIN MOTOR | Hp | INV 25 | INV 30 | INV 50 | INV 60 | |
| HEATER CAPACITY | kw | 9 | 10 | 11 | 12 | |
| TAKE-UP | PINCH ROLLER | m/m | 600 | 800 | 800 | 800 |
| TAKE UP MOTOR | Hp | INV 1 | INV 1 | INV 1 | INV 1 | |
| TAKE UP SPEED | m/min | 10 ~ 70 | 10 ~ 70 | 10 ~ 70 | 10 ~ 70 | |
| WINDER | TYPE | . | 2 SHAFT AUTO/SEMI-AUTO(Jumbo) TYPE | |||
| WINDING DIAMETER | m/m | Ø500 ~ Ø600 | ||||
| WINDING MOTOR | kg/㎠ | T/G V.S159 | T/G V.S159 | T/G V.S159 | T/G V.S159 | |
| WINDING SIZE | kg | . | ||||
| DIMENSION(L x W x H) | m/m | |||||
| OPTION DEVICE | Hopper Loader /Embossing Roller / Surface Treater | |||||
*
