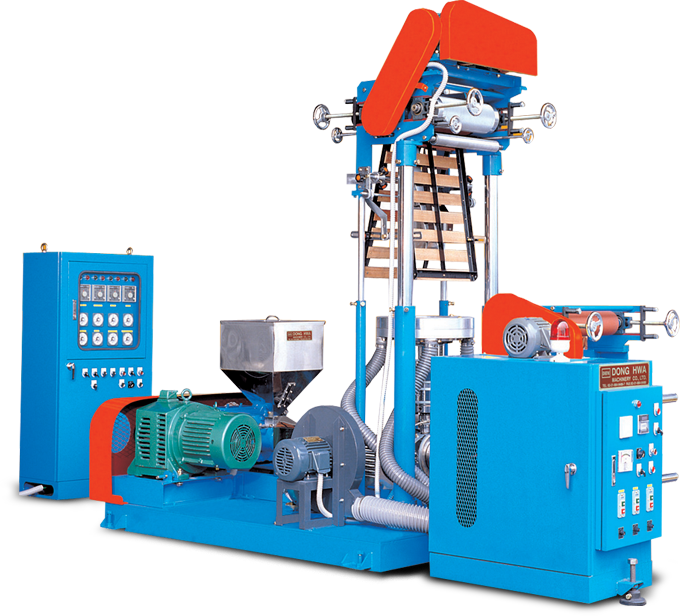

Mini Extruder
D
H
M
-
4
0

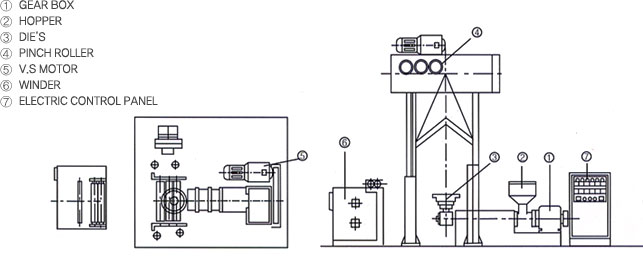

Dimension
Specifications
| ITEM | UNIT | DHM-40 | |
|---|---|---|---|
| FEATURE | MAX.EXTRUSION OUTPUT (LD/HD) | kg/hr | 7 ~ 20 |
| WIDTH OF THE FILM | m/m | 150 ~ 300 | |
| EXTRUDER | SCREW DIAMETER | m/m | Ø40 |
| LENGTH/DIAMETER RATIO OF SCREW(L/D) | . | 28:1 | |
| MAIN MOTOR | Hp | V.S 10 | |
| HEATER CAPACITY | kw | 8 | |
| TAKE-UP | PINCH R/L | m/m | 500 |
| TAKE UP MOTOR | Hp | V.S 1 | |
| TAKE UP SPEED | m/min | 10 ~ 70 | |
| WINDER | TYPE | . | . |
| WINDING DIAMETER | m/m | Ø350 | |
| WINDING MOTOR | kg/㎠ | T/Q 20 | |
| WINDING SIZE | kg | . | |
| OPTION DEVICE | Hopper Loader /Embossing Roller / Surface Treater | ||
*
