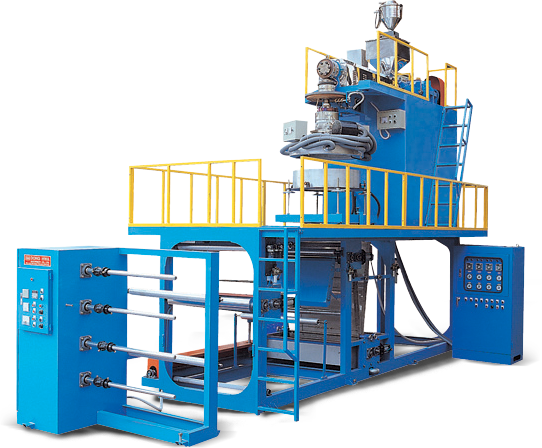

P.P 필름 압출기

D H F - P P - Ø 5 0 / 8 0 0 L
P.P 필름 압출기

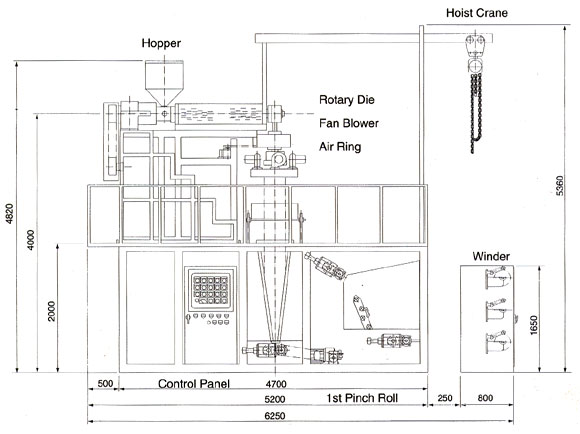

외형도 : 6250 x 2000W x 5360H

사양

ITEM DHF-PP-Ø50/800L DHF-PP-Ø60/1000L
SCREW DIAMETER Ø50mm Ø60mm
FILM THICKNESS 0.03 ~ 0.1mm
FILM(ROLLER) WIDTH 600mm(Max.)(800mm) 800mm(Max.)(1000mm)
PRODUCTION CAPACITY 40kgs/hour(Max.) 60kgs/hour(Max.)
LINE SPEED 15m - 70m/min 15m - 70m/min
MAIN MOTER V.S Motor 25HP V.S Motor 30HP
WINDER TYPE Bobbin winder
